How To Choose the Right PVC Waterstop Size
Complete Guide for Selecting PVC Waterstop in Construction
Choosing the correct PVC waterstop size is one of the most important decisions in construction joint waterproofing. A wrong selection can lead to water leakage, joint failure, and costly repairs, even if the material quality is good.
Civil engineers and consultants carefully evaluate several factors before selecting the right PVC waterstop (also known as PVC water bar, PVC water stopper or construction joint waterstop) for a project.
Why PVC Waterstop Size Matters
PVC waterstops are installed inside concrete joints to prevent water from passing through. Their effectiveness depends on:
✔ Proper width
✔ Correct profile type
✔ Suitable thickness
✔ Proper installation
If the size is too small → water may bypass the joint
If the size is too large → difficult installation and poor bonding
Key Factors Engineers Consider
1️⃣ Type of Joint
The first step is identifying the type of joint:
Construction Joint
- Used between two concrete pours
- Typically requires dumbbell type waterstop
Expansion / Movement Joint
- Allows structural movement
- Requires center bulb waterstop
👉 Engineers select the waterstop profile based on joint behavior.
2️⃣ Thickness of Concrete Member
The width of PVC waterstop depends on the thickness of the structure:
| Structure Thickness | Recommended Waterstop Width |
|---|---|
| Small structures | 150 mm – 200 mm |
| Medium structures | 200 mm – 250 mm |
| Large structures | 250 mm – 320 mm |
A general rule:
👉 Waterstop width should be proportionate to the thickness of concrete
3️⃣ Water Pressure (Hydrostatic Pressure)
Higher water pressure requires:
✔ Wider waterstop
✔ Stronger profile
✔ Better anchorage ribs
Used in:
- Basements below ground level
- Water tanks
- Dams
- Tunnels
4️⃣ Type of Structure
Different structures require different sizes:
Basements
- Medium size waterstops
- Moderate pressure
Dams & Reservoirs
- Large size waterstops
- High pressure
Tunnels & Underpasses
- High performance waterstops
- Continuous sealing required
STP / ETP Plants
- Chemical exposure + water pressure
5️⃣ Profile Design of Waterstop

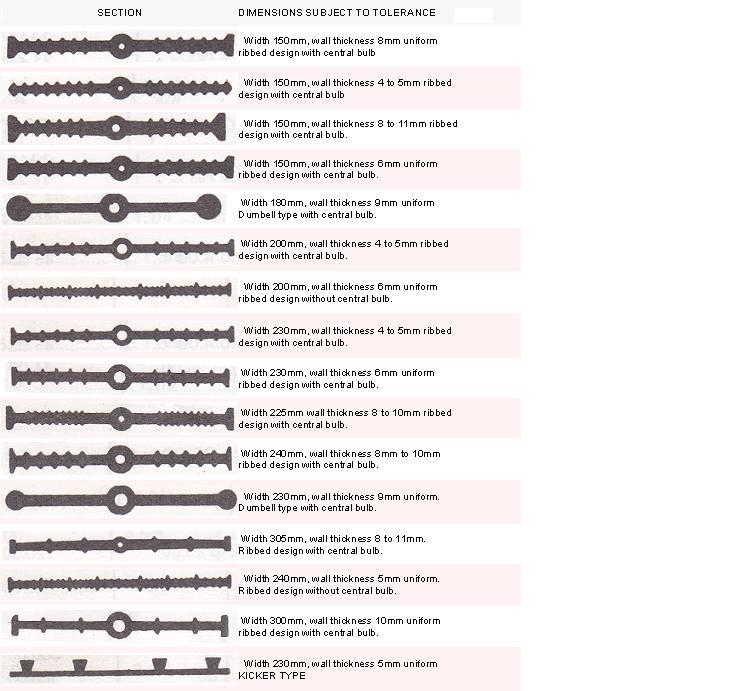

PVC waterstops come in different profiles:
Dumbbell Type
- Used in construction joints
- Suitable for most applications
Center Bulb Type
- Used in expansion joints
- Absorbs movement
Ribbed / Serrated Type
- Better bonding with concrete
- Prevents slipping
6️⃣ Installation Conditions
Engineers also consider:
✔ Ease of fixing with reinforcement
✔ Welding feasibility
✔ Site conditions
✔ Labour skill level
Sometimes a slightly smaller size is preferred for ease of installation without compromising performance
Common Mistakes in Selecting Waterstop Size
❌ Choosing size based only on price
❌ Ignoring water pressure
❌ Using same size for all applications
❌ Not considering joint type
❌ Poor coordination with structural drawings
Why Sinecos PVC Waterstops Are Preferred
Sinecos Profiles Pvt. Ltd. manufactures high-quality PVC waterstops available in multiple sizes and profiles, suitable for all types of construction joints.
Advantages:
✔ Available in wide range of sizes
✔ Strong and durable PVC compound
✔ Suitable for basements, tunnels and dams
✔ Easy to weld and install
✔ Reliable performance in Indian site conditions
✔ Quick availability for projects
Applications of Sinecos PVC Waterstops
- Basement waterproofing
- Retaining walls
- Dams and reservoirs
- Tunnels and underpasses
- STP and ETP plants
- D-wall construction
