How to Install PVC Waterstop in Construction Joints

How to Install PVC Waterstop in Construction Joints

Step-by-Step Guide for Proper Waterproofing

Proper installation of a PVC waterstop (also known as PVC water bar, water stopper, or construction joint waterstop) is critical to prevent leakage in concrete structures. Even the best quality waterstop can fail if installed incorrectly.

This guide explains the correct installation method, common mistakes, and site tips to ensure a leak-proof construction joint.

Why Correct Installation is Important

Construction joints are the most vulnerable points in:

  • Basements
  • Retaining walls
  • Tunnels
  • Water tanks

If waterstop installation is not done properly:

โŒ Water seepage will occur

โŒ Repair becomes difficult and costly

โŒ Structural durability is affected

๐Ÿ‘‰ Correct installation ensures long-term waterproofing performance.

Tools & Materials Required

Before starting, ensure availability of:

โœ” PVC waterstop (correct type & size)

โœ” Binding wire / clamps

โœ” Waterstop welding heater (for joints)

โœ” Cutter or blade

โœ” Measuring tape

โœ” Nails or fixing accessories

Step-by-Step Installation Process

1๏ธโƒฃ Select the Correct Waterstop Type

Choose based on application:

  • Dumbbell type โ†’ Construction joints
  • Center bulb type โ†’ Expansion joints

๐Ÿ‘‰ Wrong selection = failure even if installation is correct.

2๏ธโƒฃ Mark the Joint Line

  • Identify the exact location of the construction joint
  • Mark the centerline clearly

๐Ÿ‘‰ Waterstop must be installed exactly at the center of the joint.

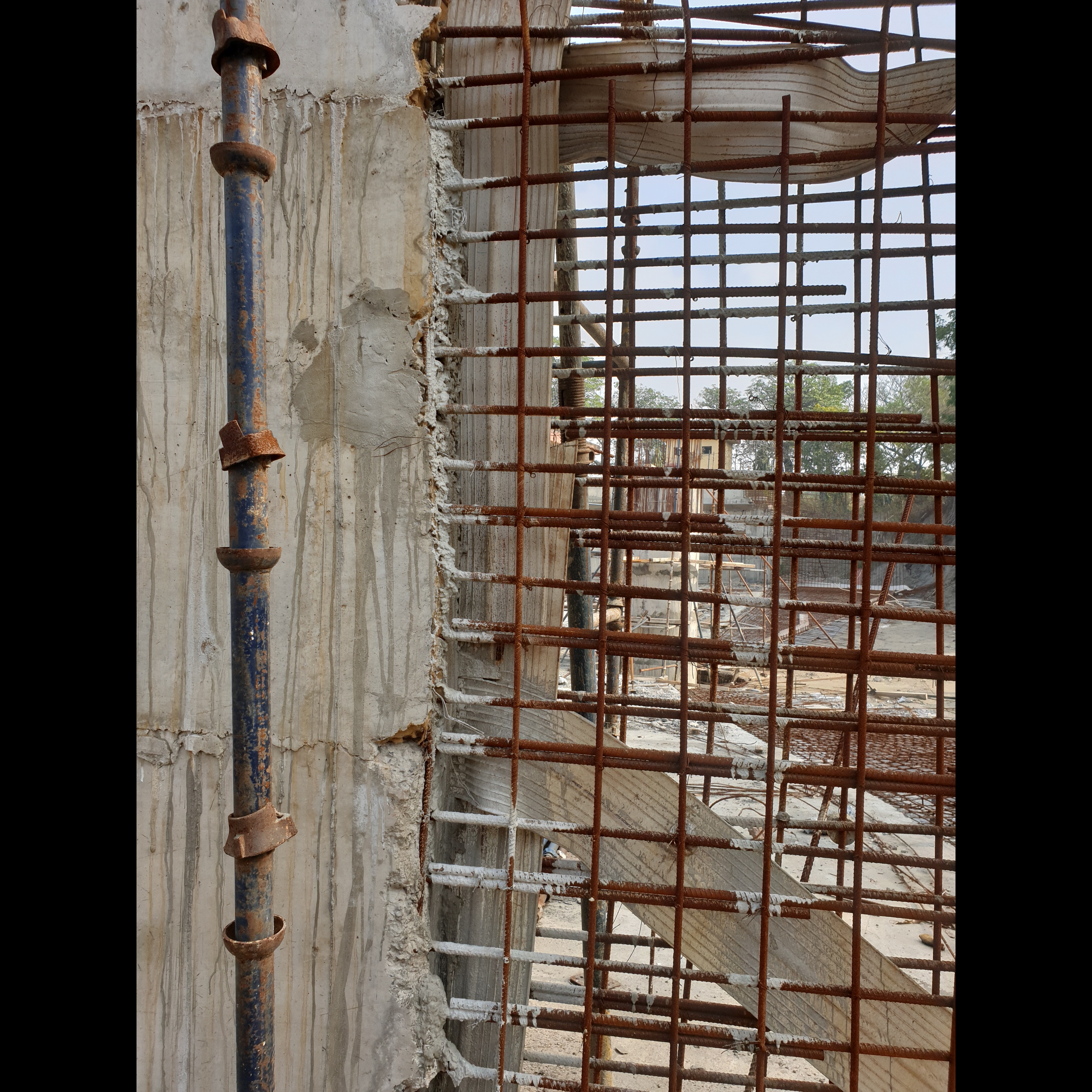

3๏ธโƒฃ Fix the Waterstop to Reinforcement

  • Tie the waterstop to steel reinforcement using binding wire or clamps
  • Ensure it is:

โœ” Straight

โœ” Properly aligned

โœ” Firmly fixed

๐Ÿ‘‰ This prevents movement during concreting.

4๏ธโƒฃ Maintain Correct Positioning

  • Half of the waterstop should be in the first concrete pour
  • Remaining half should be in the second pour

๐Ÿ‘‰ This creates a continuous barrier across the joint.

5๏ธโƒฃ Ensure Proper Welding of Joints

When joining two waterstop lengths:

  • Use a waterstop welding heater
  • Heat both ends evenly
  • Press together to form a uniform joint

โœ” No gaps

โœ” No uneven surfaces

๐Ÿ‘‰ Poor welding is a major cause of leakage.

6๏ธโƒฃ First Concrete Pour

  • Pour concrete carefully
  • Ensure proper vibration

โœ” Concrete should fully surround the waterstop

โœ” Avoid air pockets

๐Ÿ‘‰ Air voids can create leakage paths.

7๏ธโƒฃ Inspect Before Second Pour

After the first pour:

  • Check alignment
  • Ensure no displacement
  • Verify waterstop is intact

8๏ธโƒฃ Second Concrete Pour

  • Pour the second layer of concrete
  • Again ensure proper compaction

๐Ÿ‘‰ Now the waterstop is fully embedded and functional.

Important Installation Tips

โœ” Always keep waterstop straight (no bending)

โœ” Avoid twisting during fixing

โœ” Protect from damage before concreting

โœ” Ensure full concrete cover on both sides

โœ” Use proper welding equipment

Common Mistakes to Avoid

โŒ Off-center placement

โŒ Loose fixing

โŒ Improper welding

โŒ Air voids around waterstop

โŒ Using wrong type or size

๐Ÿ‘‰ These mistakes are the main reasons for leakage.

Where This Installation Method is Used

  • Basement raft slabs
  • Retaining walls
  • Lift pits
  • Tunnels and underpasses
  • Water tanks and reservoirs

Why Use Sinecos PVC Waterstops?

Sinecos Profiles Pvt. Ltd. manufactures high-quality PVC waterstops designed for easy installation and reliable performance.

Key Advantages:

โœ” Consistent quality and flexibility

โœ” Available in multiple sizes and profiles

โœ” Easy welding and handling

โœ” Suitable for Indian site conditions

โœ” Ready stock for urgent requirements

Contact Details

Sinecos Profiles Pvt. Ltd.

E-40, Sector-8, Noida โ€“ 201301, Uttar Pradesh

๐Ÿ“ž +91 9810504233

๐Ÿ“ž +91 9873849760

๐Ÿ“ง sinecos@rediffmail.com

๐ŸŒ www.sinecoswaterstop.in

Final Words

Installing PVC waterstop correctly is the most critical step in ensuring leak-proof construction joints. By following proper procedures and avoiding common mistakes, you can achieve long-lasting waterproofing performance.
